    Paper Napkin Facial Tissue Packing Machine 3 - 48 Bag/Bundle Full Automatic

    Ask Lasest Price
    Brand Name : ACE
    Model Number : ACE-VBM-A
    Certification : CE
    Price : $20000 - 60000/set
    Payment Terms : L/C, , T/T
    Supply Ability : 10 set /month
    Delivery Time : 60 days
    • Product Details
    • Company Profile

    Paper Napkin Facial Tissue Packing Machine 3 - 48 Bag/Bundle Full Automatic

    Full Automatic Facial Tissue Outer Packing Machine For Paper Napkin 3-48 Bag/Bundle

    Application of this Full Automatic Facial Tissue Outer Packing Machine For Paper Napkin 3-48 Bag/Bundle:

    This Full Automatic Facial Tissue Outer Packing Machine For Paper Napkin 3-48 Bag/Bundle is an ideal machine to pack hygienic tissue rolls in the format single row and double rows of 2 * 4 bags (8 bags), 2 * 5 bags (10 bags) , 2 * 6 bags (12 bags) etc. It can greatly increase the production and save lots of labor. It is an economical good price tissue paper packing machine for small scale tissue converting factory.


    Main features:

    1. adopt PLC and servo motors to drive the products feeding, overturn, counting, bag feeding, bag opening, bagging, sealing automatically.

    2. bagging and sealing: adopt the mound negative pressure type bagging and sealing to keep the products shape nicely.

    3. Fault tracked and warmed: the fault will be showed on the touch screen and tracked the reason to make easy to solve the fault.

    4. monitoring system: bags controlled, product checking to keep the machine won’t pack without products;and the checking system help to output the defective goods. In case that the bag can not open, machine will automatic stop. In case the bag is fault and cannot open, the bag will output automatically.


    Advantage:

    1 Full Auto Packaging Machine For Hand Towel/napkin.

    2 fully automatic.

    3 high speed up to 25 pack/minute.

    4 Save labor costs.

    6 Easy operation.

    7 can pack up to 48 bags/pack.


    Technical parameter of Full Automatic Facial Tissue Outer Packing Machine For Paper Napkin 3-48 Bag/Bundle:


    Machine modelACE-VBM-A
    Packing speed10-25 packs/min
    Max bundle bag length420mm
    Able to packhand towel, facial tissue, napkin paper etc.
    Finished bundle bag width130-420mm
    Finished bundle bag height90~105mm
    Bundle bag max length640mm
    Bundle bag packing type3,4,5,6,8,10bags/bundle
    Bundle bag materialPre-made M bag with air outlet hole(dia 5-6mm),the thickness is 40-60μm, opp, cpp, pe double side sealing film
    Pre-made bag qty2 bag base for changing and each one can hold 300-400 pcs
    Machine out-dimension4900×2900×1920 mm
    Machine power supply380V±10%,50Hz±5%
    Air supply0.6~0.7Mpa ,330L/min
    Machine weightAbout 2500kg
    Noise<80dB
    Total power12.56Kw


    FAQ


    Q: Can you provide the installation videos?

    A: Yes, we will provide.


    Q: What's the production time?

    A: Normally it is 40-60 working days, it depends on your customized requirements.


    Q: How long is your warranty?

    A: One year of the machine, wearing parts not included.


    Q: Can your company do customized machine?

    A: Yes we can. We have more than 20 years of experiences for customized designs and OEM service..


    Q: How about your after-sales services?

    A: We offer online instructions or onsite if necessary.

    Q: Can you provide the installation videos?

    A: Yes, we will provide.

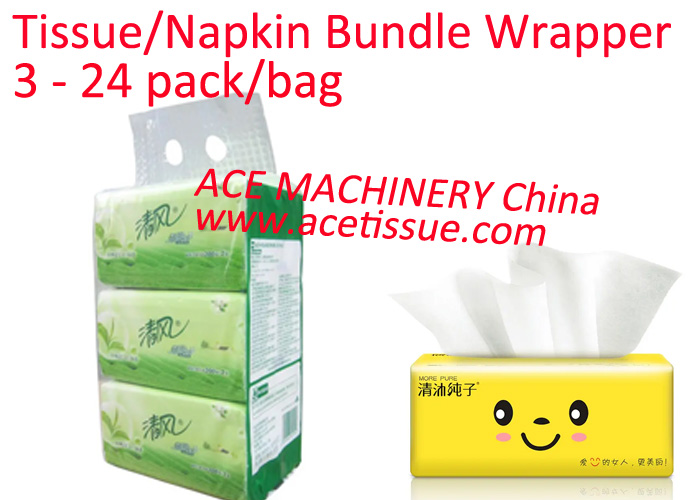

    Sample of finished product by Full Automatic Facial Tissue Outer Packing Machine For Paper Napkin 3-48 Bag/Bundle.

    Facial Tissue Outer Packing Machine
