    Automatic 125mm Single Toilet Roll Packing Machine

    Ask Lasest Price
    Brand Name : ACE
    Model Number : SRP
    Certification : CE
    Price : $20000 - 60000/set
    Payment Terms : L/C, , T/T
    Supply Ability : 10 set /month
    Delivery Time : 60 days
    • Product Details
    • Company Profile

    Automatic 125mm Single Toilet Roll Packing Machine

    Automatic Single toilet roll, kitchen roll packing machine individually

    Description of single toilet roll packing machine:

    This single toilet roll packing machine adopts PLC control, display on LCD screen, control by the inverter, excellent person-computer interface, easy to pack. And the length of product adopt double frequency converter, stepless speed change, various range adjustment, automatic clear up the packing product, and make it enter packaging machine. This machine can match with front-end production very well. The length of finished bag will be accurate tracked by high sensitivity sensor. It will not need to adjust by manual as soon as set. Individual control temperature for each sealing. It suitable for many kinds of wrapping material.


    Technical parameter:


    Single roll size

    Diameter: 85 - 125mm,

    height: 80 - 150mm

    Machine packing range:L(270~650) * W(160~250) * H(80~150). Other size , please specify.
    Packing format

    Individual Single Toilet roll or kitchen towel wrapped.

    Packing materialSPP, OPP and paper (inside must have a super thin plastic film).
    Bag typefilm roll
    Pack speed

    130 roll / min

    If use paper, about 50-60 roll/min

    Pack typefull automatic bagging and sealing
    Side sealWith side heating system for sealing both ends of the toilet rolls.
    parameter settingtouch screen
    Control

    servo motor

    PLC

    Power15-21Kw,380V,50Hz
    Pressure0.6Mpa(user supplied)
    machine size3400×1700×1200mm (L×W×H)
    machine weightabout 4000kg

    Components configuration of this single roll packing machine.


    autoamtic single tissue roll packing machine

    PLC

    Panasonic
    servo motor.Taiwan TECO
    touch screen.Taiwan Weinview
    Omron sensor.Japan
    pneumatic parts.Taiwan Airtac
    BearingNSK or SKF

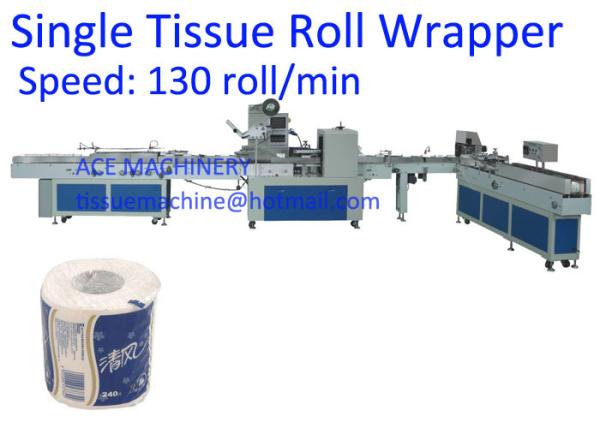

    Sample of finished product by fully-automatic single toilet paper roll packing machine.

    individual toilet roll packing machine
