2 Lanes 300x300mm Napkin Paper Making Machine

    Buy cheap 2 Lanes 300x300mm Napkin Paper Making Machine from wholesalers

    Buy cheap 2 Lanes 300x300mm Napkin Paper Making Machine from wholesalers
    • Buy cheap 2 Lanes 300x300mm Napkin Paper Making Machine from wholesalers
    • Buy cheap 2 Lanes 300x300mm Napkin Paper Making Machine from wholesalers

    2 Lanes 300x300mm Napkin Paper Making Machine

    Ask Lasest Price
    Brand Name : ACE
    Model Number : TNM-2L
    Certification : CE
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 10 set /month
    Delivery Time : 60 days
    • Product Details
    • Company Profile

    2 Lanes 300x300mm Napkin Paper Making Machine

    High Speed Napkins Machine With 2lanes 2500 Sheet/Min, Machine Napkin 300x300mm


    Application

    This High Speed Napkins Machine With 2lanes 2500 Sheet/Min, Machine Napkin 300x300mm is mainly used to automatically fold, emboss, print, cut and count 1/4 fold table napkins, cocktail napkin, restaurant napkins, beverage napkin, lunchen napkin, 1/6 fold tallfold dispenser napkin, wallet tissue and MG paper napkins etc. The mainly function of this machine is to manufacture plain, embossed and LOGO printed tissue paper napkins. It can run at very high speed up to 2600 sheets per minute.


    Quick details:

    1 Size 240x240mm

    2 Steel to paper embossing unit

    3 two colors printing napkin machine

    4 mechanical 1/4 1/6 1/8 fold

    5 High speed 2600 sheet/min


    Technical parameters

    TNM-2L High Speed 2 Decks Delivery Paper Napkin Machine


    ModelTNM-2L
    Output type

    2 decks

    2 lanes

    4 lines

    Folding speed1000-2600 piece/min, depending on the paper quality and napkin size.
    Raw paper

    13-20g/m2 2-ply, 16-45g/m2 1-ply, wooden pulp paper or nonwoven airlaid.

    Other sizes please specify.

    Jumbo roll size(200-460)mm x Φ1200mm (Depending on your napkin size,customized)
    Napkin unfolded size200mm x 200mm to 460mm x 460mm or Customized.
    Napkin folded size

    100mm x 100mm to 230mm x 230mm

    One size is fixed.

    One napkin size is adjustable, decided by the paper roll width.

    Folding type

    Mechanical fold with band saw cutting; 1/4 fold;

    Vacuum folding and other folding types available.

    Folding unitWith folding fingers.
    Embossing unit

    1- Steel to paper(wool), Male to female. (Steel to steel is available.)

    2- Embossing pattern can be any LOGO, brand name, flowers etc.

    3- Embossing pattern can be customized by client or recommended by us

    4- Controlled by screws, mechanical pressing type. Cylinder type is optional.

    Tension control

    Speedless Tension control unit to fit the machine for paper of different quaity and different gsm.

    With automatic web guiding system.

    With automatic web tension control system.

    Power5.5Kw depends on requiremetns (3-phase AC380V 50Hz or customized)
    Machine size7x2x3m
    Weight4000KG
    Videos and photos available.

    Configuration:

    BearingsNSK
    PLCSiemens
    InverterSiemens
    Touch screenSiemens
    Auto web guideItaly Best
    Auto tension systemLike
    SteelHigh Speed steel
    AniloxCeramix

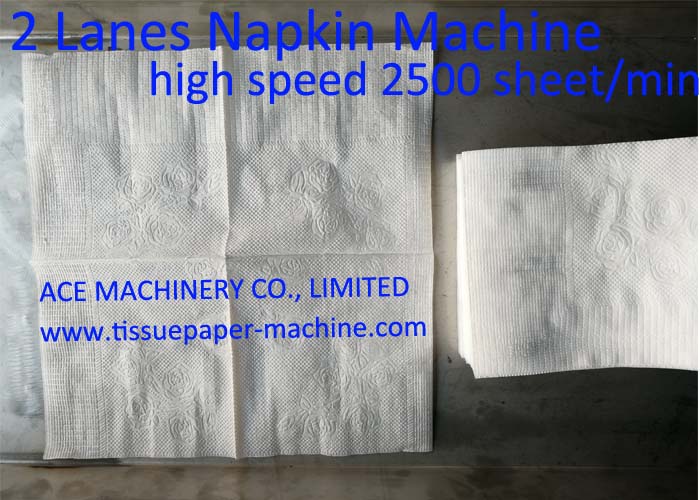

    Products made by this High Speed Napkins Machine With 2lanes 2500 Sheet/Min, Machine Napkin 300x300mm:

    machine napkin
