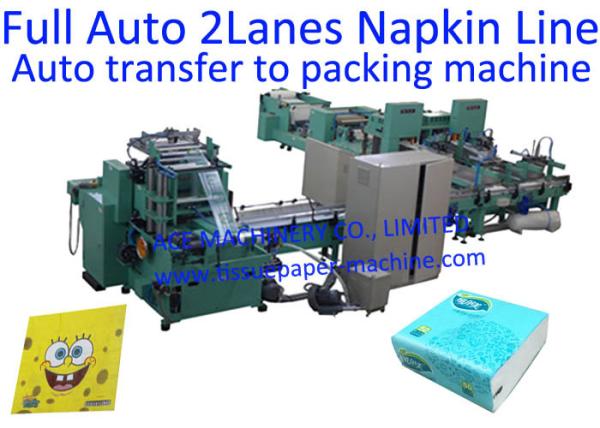

TNL-2H Fully-auto Napkin Line from jumbo roll to single pack NO
need worker
2 lanes Output Delivery Napkin Machine
Technical parameter:
A. back stand
1. Parent roll specification: 18-75g/m2 1-ply; 13-18gsm 2 plies
tissue paper. Or customized.
2. Parent roll size: ≤Φ1100 x 600mm (300mm * 2lanes = 600mm).
Diameter x Width
3. Core inner diameter: 76mm
C. Embossing Section
1. One set of steel to paper embossing unit. (Embossing pattern
provided by client or recommend by us)
2. Mechanical press type.
D. Printing Section (advanced design.)
1. With 2 colors flexo-graphic printer section.
2. Printing unit with driven by timing belts to make printing more
precise.
3. Simple and easy adjustment of horizontal and longitudinal
registration by turning hand wheel.
4. The printing plate roller can be adjustable or disassembled from
the printing unit, much easier for the operator to attach the
printing rubber plates or clean the roller.
E. Folding Section
1. Open size: 300x300mm
2. Folded size: 150x150mm
3. Fixed cutoff size: 300mm.
4. Folder type: mechanical folding type, quarter fold type.
5. Synchronizer for feeding paper
6. Loop knife cutting, and distance of two can be adjustable
7. With 1 deck output delivery. (Double decks available)
8. Capacity: 2000 piece/min, depending on paper quality, gsm and
workers operation.
9. With automatic counting unit, every count 1 - 99999 sheet/count.
With tissue pop up every count.
10. With auto transfer system to transfer the napkins from the
napkin folder to the conveyor of the packing machine, no need any
worker A to Z.
FNP Fully Automatic Napkin Packing Machine
Main characteristics & Structure features:
1. Adopt packing way by wrapping, hemming and sealing with compact
structure suitable for packing regularly square objects, such as
non-highly tight tissue and paper box.
2. Adopt the system of stepless frequency conversion controlling,
touching screen and PLC.
3. Adopt auto-putting conveyor, easy to be connected with automatic
production line, saving much laboring cost.
4. It saves much packing material by the function of photocell
checking, servo tracking, non-material feeding without tissue.
5. High automation, high specialization, high efficiency and less
trouble.
6. Various packing size may change quickly among different tissue
sizes.
7. Servo motor control
8. With perforation system to perforate dotted line on each pack of
napkins.
9. With date coding system to print manufacture dates on each pack
of napkins.
10. Automatic feeding lubrication oil to prolong the mechanical
parts of the machine.
Technical parameters of Automatic high speed tissue paper napkin machine, low cost tissue
paper machine:
| Napkin sizes | 180x180mm (folded 90x90mm) 240x240mm (folded 120x120mm) 250x250mm (folded 125x125mm) 300x300mm (folded 150x150mm) 330x330mm (folded 165x165mm) 400x400mm (folded 200x200mm) 430x430mm (folded 215x215mm) |
| Folding type | Mechanical folding 1/4 quarterfold 1/6 tallfold 1/8 fold 1/12 fold |
| Printing unit | Up to 4 colors printing |
Full Embossing unit Edge embossing unit | Steel to paper embossing Steel to steel embossing Steel to mirror embossing |
| Speed | 2000 sheet/min |
| Automatic | Fully automatic A to Z no need worker With auto transfer to napkin packing machine |
| Control system | PLC control Touch screen for data setting Inverter frequency speed control Servo motor control the auto transfer With JOG function, easy for threading the paper and maintenance. With emergency stop function, better for safety, you can stop the
machine any time when there is emergency. With auto sensors for detecting paper breaks or used up. Machine
will automatically stop if paper breaks or used up. |
| Power | About 4KW |
| Machine size | About 6*1.5*2m |
| Machine weight | About 4000kg |
Components’ brands of Automatic high speed tissue paper napkin machine, low cost tissue
paper machine
| PLC | Japan Mitsubishi |
| Inverter | Japan Mitsubishi |
| Touch screen | Japan Mitsubishi |
| Bearings | SKF |
| Steel | America |
| Technology | Taiwan design |
| Folding blades | Germany steel |
| Bandsaw blades | Japan imported steel |
