fully automatic tissue paper making machine, tissue paper
converting machine
Description:
This fully automatic tissue paper making machine, tissue paper
converting machine is a multifunctional machine to make toilet
paper, hygienic bathroom tissue, maxi roll, industrial roll, JRT,
HRT, hardwound roll, hand towel roll, bed sheet roll, hospital
roll, airlaid nonwoven rolls with steel to rubber full embossing,
edge side embossing, color printing, point to point lamination etc.
It has on-line slitters. The jumbo rolls go through the machine and
comes out finished rolls already cut, embossed, printed etc. no
need extra cutting machine. It is a low cost small scale economical
tissue paper converting machine.
Jumbo Roll Tissue/Certerline Roll Machine
A. Jumbo roll
a. Jumbo roll specification: 14-45 g/m2 1 ply virgin tissue paper
or other tissues (Other material like nonwoven/airlaid to be
customized)
b. Jumbo roll size: ≤2000mm x Φ1200mm; (Other size available.)
c. Jumbo roll core diameter: Φ76mm.
B. Product size
a. Finished product type: tissue rolls.
b. Finished roll inner core diameter to be confirmed: adjsutable.
c. Finished rolls diameter is adjustable 100mm to 300mm (Max.
Ф400mm)
d. Finished roll width is adjustable within certain scopes (Pls
confirm the minimum size)
D. Rewinding Section
a. Adopt expandable pneumatic shaft rewinding system.
b. Manually feeding paper cores on the pneumatic shaft.
c. Core diameter manually adjustable. (Please specify your size)
d. With automatic perforation system: Perforation size is
adjustable.
e. Perforation system can be switched OFF or switched ON. Able to
produce rolls with perforation and without perforation.
f. With automatic finished roll tail trimming and sealing system.
E. Full Embossing Section (New technology copied Italy)
a. With 1 set of steel-to-rubber full embossing unit. (Embossing
pattern provided by the buyer or recommended by us.)
c. Embossing tension is adjustable.(Micro adjustment.) so that the
machine can work with papers with different quality and different
gsm.
d. Floor standing wallboard structure (thickened full steel plate
support structure); to make sure the machine will NOT vibrate when
running at high speed. Other companies adopt half steel frame for
upper part and half steel part for lower parts, which is weak
structure.
e. Crown on the embossing rolls.
F. Control system
a. Machine speed: 0-220m/min.
b. Speed of production is controllable.
c. With automatic count function. (How many sheets per roll or how
big diameter per roll)
d. PLC control, internationally famous brand.
e. Human-Machine Interface (touch screen), internationally famous
brand.
f. With inverter to stabilize the power fluctuation.(Variable
Frequency)
g. With JOG function.
h. With emergency stop function.
i. Machine will automatically stop if paper break or paper jams.
j. Power: 5.5-7.5KW for main motor 3-phase AC380V 50HZ or
customized.
k. Air pressure: 0.5Mpa(buyer supplied)
l. Machine weight: 3500kg.
m. Machine size: 6000x2500x1800mm.
Brands of components used on this fully automatic tissue paper making machine, tissue paper
converting machine:
| PLC | Siemens |
| Inverter | Siemens |
| Human machine interface | Siemens |
| Bearing | SKF NSK |
| Pneumatic parts | Airtac |
| Electrical parts | Schneider |
| Steel | Japan steel |
| Sensors | Omron |

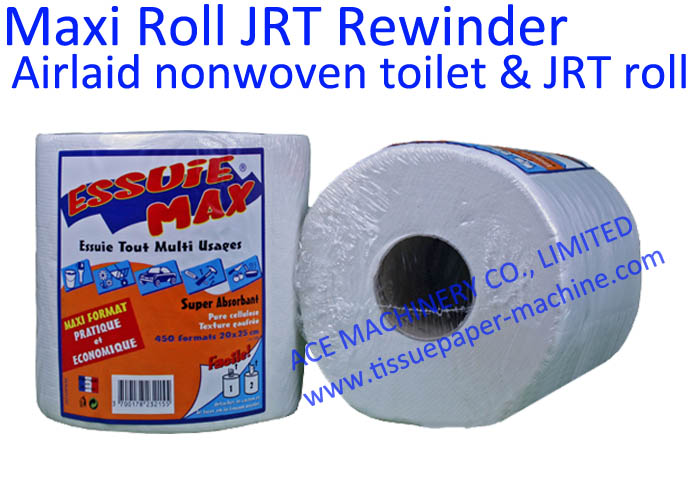

Finished products of this fully automatic tissue paper making machine, tissue paper
converting machine:
