Full Automatic Napkin Production Line Auto Transfer For Lunch Napkin

Application

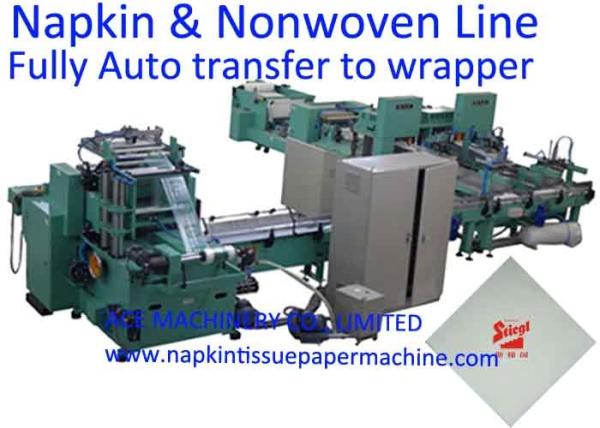

This ACE-TNL-2H Full Automatic Napkin Production Line Auto Transfer For Lunch Napkin is used to produce 1/4 quarter fold, 1/6 tallfold, beverage napkins, table napkins, cocktail napkin, restaurant napkin, nonwoven airlaid napkins etc. This fully automatic paper napkin production line consists of napkin folding machine, auto transfer system to transfer the napkins to the conveyor of the automatic napkin packaging machine and then wrap it with film rolls. The whole process is fully automated, no need any worker. It can be also equipped with color printing units, steel to paper embossing units, lamination unit and so on.

Advantages
1 Fully automatic
2 Auto transfer system.
3 High speed and save labor.
4 Printing and embossing

Technical parameters:

TNL-2H Fully-auto Napkin Line from jumbo roll to single pack NO need worker
Single deck Output Delivery Napkin Machine
Technical parameter:
A. back stand
1. Parent roll specification: 18-75g/m2 1-ply; 13-18gsm 2 plies tissue paper. Or customized.
2. Parent roll size: ≤Φ1100 x 300mm. Diameter x Width
3. Core inner diameter: 76mm

E. Folding Section

1. Open size: 300x300mm

2. Folded size: 150x150mm

3. Fixed cutoff size: 300mm.

4. Folder type: mechanical folding type, quarter fold type.

5. Synchronizer for feeding paper

6. Loop knife cutting, and distance of two can be adjustable

7. With 1 deck output delivery. (Double decks available)

8. Capacity: 500- 700 piece/min, depending on paper quality, gsm and workers operation.

9. With automatic counting unit, every count 1 - 99999 sheet/count. With tissue pop up every count.

10. With auto transfer system to transfer the napkins from the napkin folder to the conveyor of the packing machine, no need any worker A to Z.

F. Control system
1. With JOG function, easy for threading the paper and maintenance.
2. With emergency stop function, better for safety, you can stop the machine any time when there is emergency.
3. With auto sensors for detecting paper breaks or used up. Machine will automatically stop if paper breaks or used up.
4. Famous brand motor.
5. Power: 2.75~4.5kw (3-phase AC380V 50Hz or customized)
6. Pressure: 0.5MPa.
7. Machine size: 5x1x1.7(M)
8. Weight: about 2500 kg

Technical parameters:

FNP Fully Automatic Napkin Packing Machine
Main characteristics & Structure features:
4. It saves much packing material by the function of photocell checking, servo tracking, non-material feeding without tissue.
5. High automation, high specialization, high efficiency and less trouble.
6. Various packing size may change quickly among different tissue sizes.
7. Servo motor control
8. With perforation system to perforate dotted line on each pack of napkins.
9. With date coding system to print manufacture dates on each pack of napkins.
10. Automatic feeding lubrication oil to prolong the mechanical parts of the machine.

Samples made by this Full Automatic Napkin Production Line Auto Transfer For Lunch Napkin:
