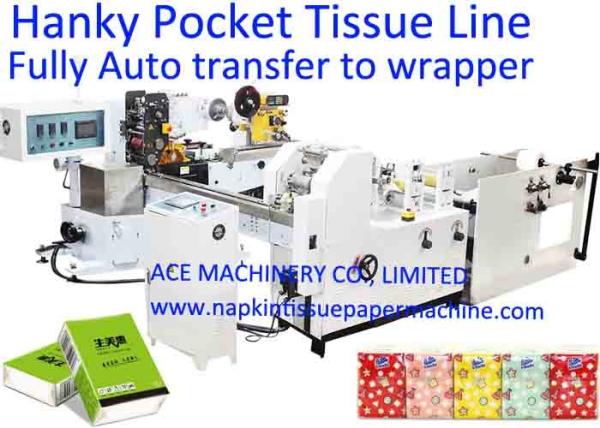

Fully Automatic Paper Handkerchief Pocket Tissue Machine With
Packing Machine
Description
This ACE-PTL Fully Automatic Paper Handkerchief Pocket Tissue Machine With
Packing Machine is used to manufacture pocket tissue, hanky napkin, paper
handkerchief etc. take-away tissue paper products. It consists of
pocket tissue embossing folding printing machine, automatic single
bag pocket tissue packing machine, multi bags paper handkerchief
packaging machine. It is a whole fully automatic pocket tissue
production line with auto transfer to the packing machine. No need
any worker. Each has 8 or 10 pieces and 10 bags in a bundle
package.
Handkerchief Line need 1 worker in the multi bag packing machine
Fully auto Handkerchief folding Machine with single lane Delivery
Technical Specification:
1. Basis weight of paper is 13 ÷ 15.5 g/m² 2-4 layers wooden virgin
pulp paper.
2. Parent roll size: Width 210mm x Φ1100mm.
3. Unfolded size: 200x200mm. (able to make 2 types pocket tissues.
The longer one and shorter one.)
4. Folded size: 72x51mm±2mm Fold type: standard fold (Z-fold)
shorter one
104.5x51mm±2mm Compact fold (N-fold) The longer one
5. Folder type: Vacuum absorbing; Z-fold or N-fold type.
6. Embossing unit: 1 set of Steel to rubber embossing unit.
(embossing design specified by customer)
7. With single lanes output delivery
8. Capacity: 500-800sheet/min
9. With automatic counting and transfer system to count and
transfer the pocket tissues(8pcs, 10pcs, etc.) from the folding
machine to the conveyor of the single bag packing machine. No need
worker to take and put the pocket tissues.
11. Power: about 7.5Kw to 11kw (3-phase AC380V 50Hz or customized)
12. Pressure: 0.5MPa.
13. Overall size: 4x1.2x1.3(M)
14. Weight: about 3000kg
Fully auto Single Bag Packing Machine
Main features
The whole processes feeding paper, sealing, labeling are
automatically completed, greatly saving lots of labor costs while
increasing the production efficiency etc.
It is with malfunction alarming system, easy to find out and solve
the problem.
With automatic production date printing system(decode system)
(Optional)
Technical parameters
Packing size: L(70-110)xW(50-55)xH(22-28)mm
Packing speed: 60-100 pack/min
Packing film material: CPP etc.
Control system: PLC control, touch screen, variable frequency speed
control (inverter), and famous brands.
Installed power: about 4-6KW
Power supply: 3phase 380v 50hz or customized.
Air pressure: 0.5Mpa
Machine size: 3200x3100x1900mm
Machine weight: 1500kg
Fully-Automatic Multi bags Pocket Tissue Paper Handkerchief Hanky
Bundle Packing Machine
This hanky bundle packing machine adopts advanced PLC, touch screen
and high precision optical sensors for tracking paper and feeding
the films precisely. Adopt cam system for more stable and better
packing.
Packing size: L(200-300)xW(72-106)xH(45-80)mm
Packing speed: 15-20 pack/min depends on the worker operation.
NO need worker to feed the pre made plastic bags.
Packing film material: CPP etc..
With automatic label system.
Installed power: about 3KW
Power supply: 3phase 380v 50hz or customized.
Air pressure: 0.6Mpa.
Machine size: 2100x1300x1650mm
Machine weight: 1100kg
Brands of Components used on this machine.
| PLC | SIEMENS |
| Inverter | SIEMENS |
| Touch screen | SIEMENS |
| Servo motor | INVT |
| Servo drive | INVT |
| Bearings | NSK SKF |
| Electrical parts | Schneider |
| Pneumatic parts | Airtac |
| Sensor | Sick |
FAQ
Q: Are you trading company or manufacturer
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is
60-90 days if the goods are not in stock, it is according to
quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay
the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30%
T/T in advance ,balance before shipment.
Finished products of this Fully Automatic Paper Handkerchief Pocket Tissue Machine With
Packing Machine:
